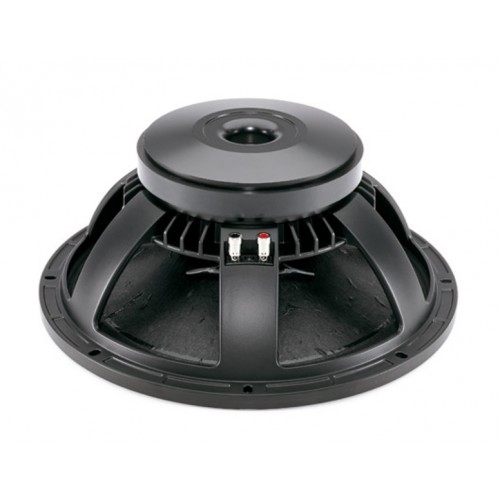

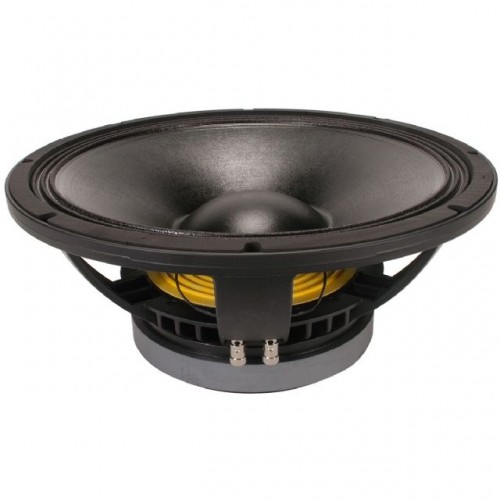

B&C Speakers 15PL100 - Woofer 15" 8 ohm

Manual

• 1400 W continuous program power capacity
• 100 mm (4 in) copper voice coil
• 35 - 2000 Hz response
• 97 dB sensitivity
• Double silicone spider with optimized compliance

Il 15PL100 di B&C Speakers è un woofer da 15" con un doppio ragno in silicone a cedevolezza ottimizzata. Questo modello ad alta potenza offre un'alta efficienza ed è ideale come subwoofer di potenza per sistemi professionali.

1400 W continuous program power capacity

100 mm (4 in) copper voice coil

35 - 2000 Hz response

97 dB sensitivity

Double silicone spider with optimized compliance

General

• Product type Cone driver
• Brand B&C Speakers
• Reference 15PL100
• Product code ALT15PL1008
• Informations
• Nominal impedance 8 ohm
• Dimensional category 15.5 inch
• Frequency coverage type Sub, Low, Midbass
• Manufacturer sensitivity 97 dB
• Calculated sensitivity 97.54 dB
• Nominal power handling 700 W
• Bandwidth 35÷2000 Hz
• Fundamental parameters
• Sd 855 cm²
• Mms 121 gr
• Le 1.7 mH
• Re 5 ohm
• BL 26.8 T.m

Small signal parameters

• Fs 37 Hz
• Qes 0.21
• Qms 6.6
• Qts 0.2
• Vas 154 L
• Datas
• Xmax ±7 mm
• EBP 176 Hz
• Zmin 6.8 ohm
• Fs / Qts 185 Hz
• Vas * Qts² 6.16 L
• Efficiency 3.6 %
• Calculated efficiency 3.57 %
• Weight ~11.9 kg

Dimensions

• Voice coil diameter 4 inch
• Winding depth 21 mm
• Gap height 11 mm
• Outside diameter 393 mm
• Baffle cutout diameter 354 mm
• Front thickness 16 mm
• Depth after front 157 mm
• Shape & Materials
• Front chape Cylindrical
• Magnet type Ferrite
• Basket masterial Aluminium
• Winding material Copper
• Voice coil former Glass fiber
