- Stock: In Stock
- Brand: Peerless
- Model: TC7FD00-04
- Weight: 0.50 Kg
The TC7FD00-04 2-1/2" full-range speaker from Tymphany was designed to be an economical yet great-performing choice for applications that include TVs, music player docking stations, and hi-fi line arrays.
Highlights
- Cost-effective ceramic ferrite magnet and stamped steel frame
- Patented NRSC PentaCut cone technology controls resonances and improves performance
- Under-spider venting increases power handling
- Half-roll rubber surround for unrestricted travel
- Copper pole piece cap controls impedance and extends HF response
Product Details
Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer
This TC family 2.5 inch 4 ohm full-range driver,with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and other compact applications in mind.
PRODUCT SPECIFICATIONS
|
Nominal Diameter |
2-1/2" |
|
Power Handling (RMS) |
20 Watts |
|
Power Handling (max) |
40 Watts |
|
Impedance |
4 ohms |
|
Frequency Response |
130 to 20,000Hz |
|
Sensitivity |
82.4 dB 2.83V/1m |
|
Voice Coil Diameter |
0.75" |
THIELE-SMALL PARAMETERS
|
Resonant Frequency (Fs) |
143 Hz |
|
DC Resistance (Re) |
3.2 ohms |
|
Voice Coil Inductance (Le) |
0.02 mH |
|
Mechanical Q (Qms) |
3.7 |
|
Electromagnetic Q (Qes) |
1.22 |
|
Total Q (Qts) |
0.92 |
|
Compliance Equivalent Volume (Vas) |
0.02 ft.³ |
|
Mechanical Compliance of Suspension (Cms) |
0.75 mm/N |
|
BL Product (BL) |
1.97 Tm |
|
Diaphragm Mass Inc. Airload (Mms) |
1.64g |
|
Maximum Linear Excursion (Xmax) |
1 mm |
|
Surface Area of Cone (Sd) |
22.1 cm² |
MATERIALS OF CONSTRUCTION
|
Cone Material |
Paper |
|
Surround Material |
Rubber |
|
Basket / Frame Material |
Steel |
|
Magnet Material |
Ferrite |

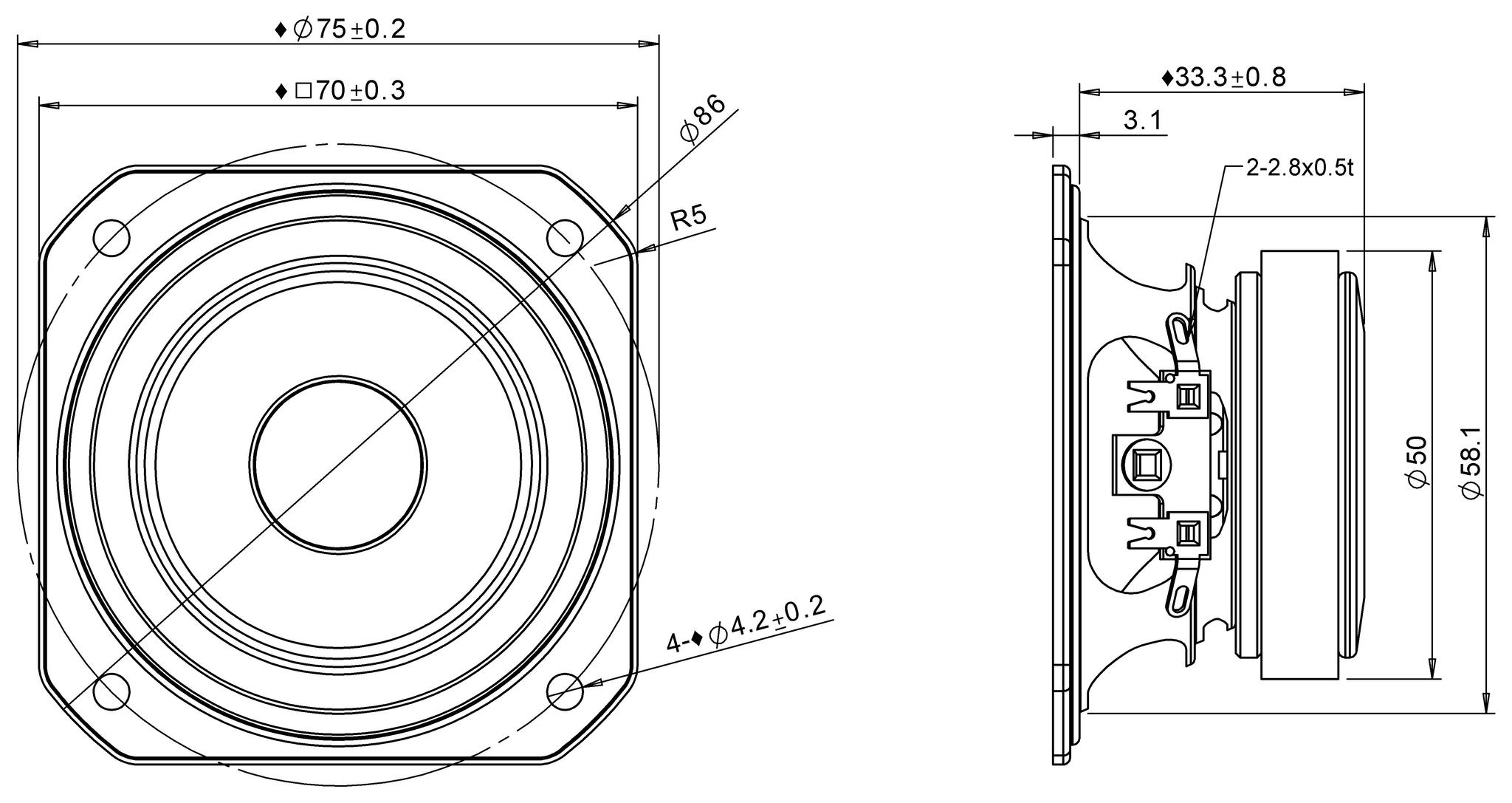

MOUNTING INFORMATION
|
Overall Outside Diameter |
2.95" |
|
Baffle Cutout Diameter |
2.56" |
|
Depth |
1.43" |
|
# Mounting Holes |
4 |
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
|
Sealed Volume |
0.05 ft.³ |
|
Sealed F3 |
138 Hz |
|
Vented Volume |
0.1 ft.³ |
|
Vented F3 |
82 Hz |
