- Stock: In Stock
- Brand: Peerless
- Model: SLS-P830667
- Weight: 2.00 Kg
The Peerless SLS Series combines high quality performance with an affordable design.
Highlights
- Premium sculpted stamped steel chassis
- Coated paper cone with rubber edge
- Shorting ring in magnet system
Product Details
Peerless by Tymphany SLS-P830667 8" Paper Cone SLS Subwoofer
The SLS line combines high quality performance with an affordable design. This 8 inch 8 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.
PRODUCT SPECIFICATIONS
|
Nominal Diameter |
8" |
|
Power Handling (RMS) |
110 Watts |
|
Power Handling (max) |
220 Watts |
|
Impedance |
8 ohms |
|
Frequency Response |
36.5 to 2,000Hz |
|
Sensitivity |
87.2 dB 2.83V/1m |
|
Voice Coil Diameter |
1.5" |
THIELE-SMALL PARAMETERS
|
Resonant Frequency (Fs) |
42 Hz |
|
DC Resistance (Re) |
5.5 ohms |
|
Voice Coil Inductance (Le) |
0.78 mH |
|
Mechanical Q (Qms) |
5.7 |
|
Electromagnetic Q (Qes) |
0.75 |
|
Total Q (Qts) |
0.66 |
|
Compliance Equivalent Volume (Vas) |
0.93ft.³ |
|
Mechanical Compliance of Suspension (Cms) |
0.41 mm/N |
|
BL Product (BL) |
8.26 Tm |
|
Diaphragm Mass Inc. Airload (Mms) |
34.8g |
|
Maximum Linear Excursion (Xmax) |
8.41 mm |
|
Surface Area of Cone (Sd) |
213.8 cm² |
MATERIALS OF CONSTRUCTION
|
Cone Material |
Coated Paper |
|
Surround Material |
Rubber |
|
Basket / Frame Material |
Steel |
|
Magnet Material |
Ferrite |

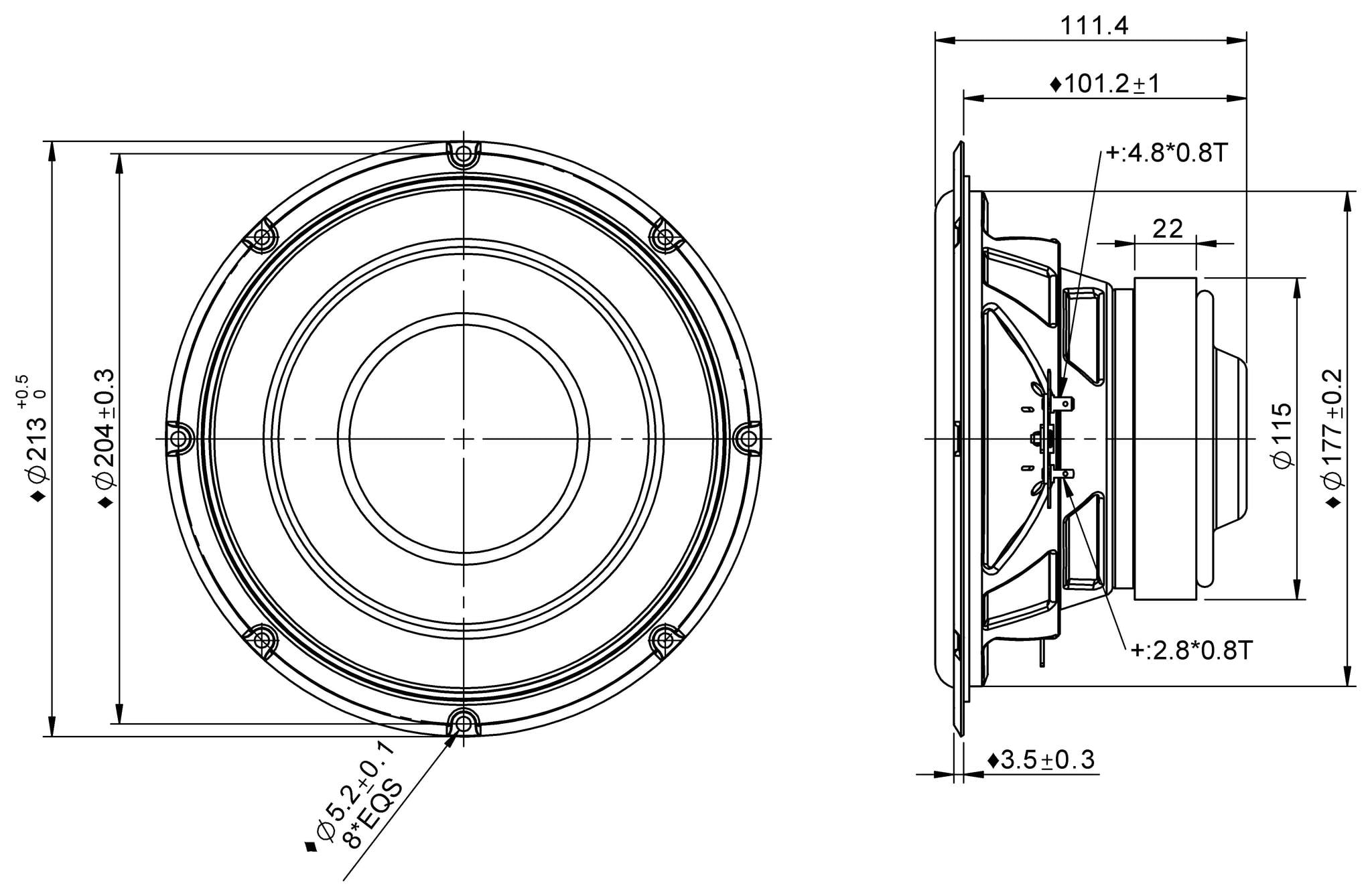

MOUNTING INFORMATION
|
Overall Outside Diameter |
8.44" |
|
Baffle Cutout Diameter |
6.79" |
|
Depth |
2.09" |
|
# Mounting Holes |
8 |
OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)
|
Sealed Volume |
0.72 ft.³ |
|
Sealed F3 |
58 Hz |
|
Vented Volume |
2.09 ft.³ |
|
Vented F3 |
28 Hz |
