- Stock: In Stock
- Brand: Peerless
- Model: TC6FD00-04
- Weight: 0.50 Kg
Tymphany's well-engineered yet economical TC6FD00-04 2" full-range speaker provides accurate, non-fatiguing audio reproduction.
Highlights
- Cost-effective ceramic ferrite magnet and stamped steel frame
- Patented NRSC PentaCut cone technology controls resonances and improves performance
- Under-spider venting increases power handling
- Half-roll rubber surround for unrestricted travel
- Copper pole piece cap controls impedance and extends HF response
Product Details
Peerless by Tymphany TC6FD00-04 2" Full Range Paper Cone Woofer 4 Ohm
This TC family 2 inch 4 ohm full-range driver,with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with television and other compact applications in mind.
PRODUCT SPECIFICATIONS
|
Nominal Diameter |
2" |
|
Power Handling (RMS) |
15 Watts |
|
Power Handling (max) |
30 Watts |
|
Impedance |
4 ohms |
|
Frequency Response |
150 to 20,000Hz |
|
Sensitivity |
81.5 dB 2.83V/1m |
|
Voice Coil Diameter |
0.75" |
THIELE-SMALL PARAMETERS
|
Resonant Frequency (Fs) |
175 Hz |
|
DC Resistance (Re) |
3.5 ohms |
|
Voice Coil Inductance (Le) |
0.02 mH |
|
Mechanical Q (Qms) |
4.1 |
|
Electromagnetic Q (Qes) |
1.29 |
|
Total Q (Qts) |
0.98 |
|
Compliance Equivalent Volume (Vas) |
0.008 ft.³ |
|
Mechanical Compliance of Suspension (Cms) |
0.68 mm/N |
|
BL Product (BL) |
1.92 Tm |
|
Diaphragm Mass Inc. Airload (Mms) |
1.22g |
|
Maximum Linear Excursion (Xmax) |
1 mm |
|
Surface Area of Cone (Sd) |
15.2 cm² |
MATERIALS OF CONSTRUCTION
|
Cone Material |
Paper |
|
Surround Material |
Rubber |
|
Basket / Frame Material |
Steel |
|
Magnet Material |
Ferrite |

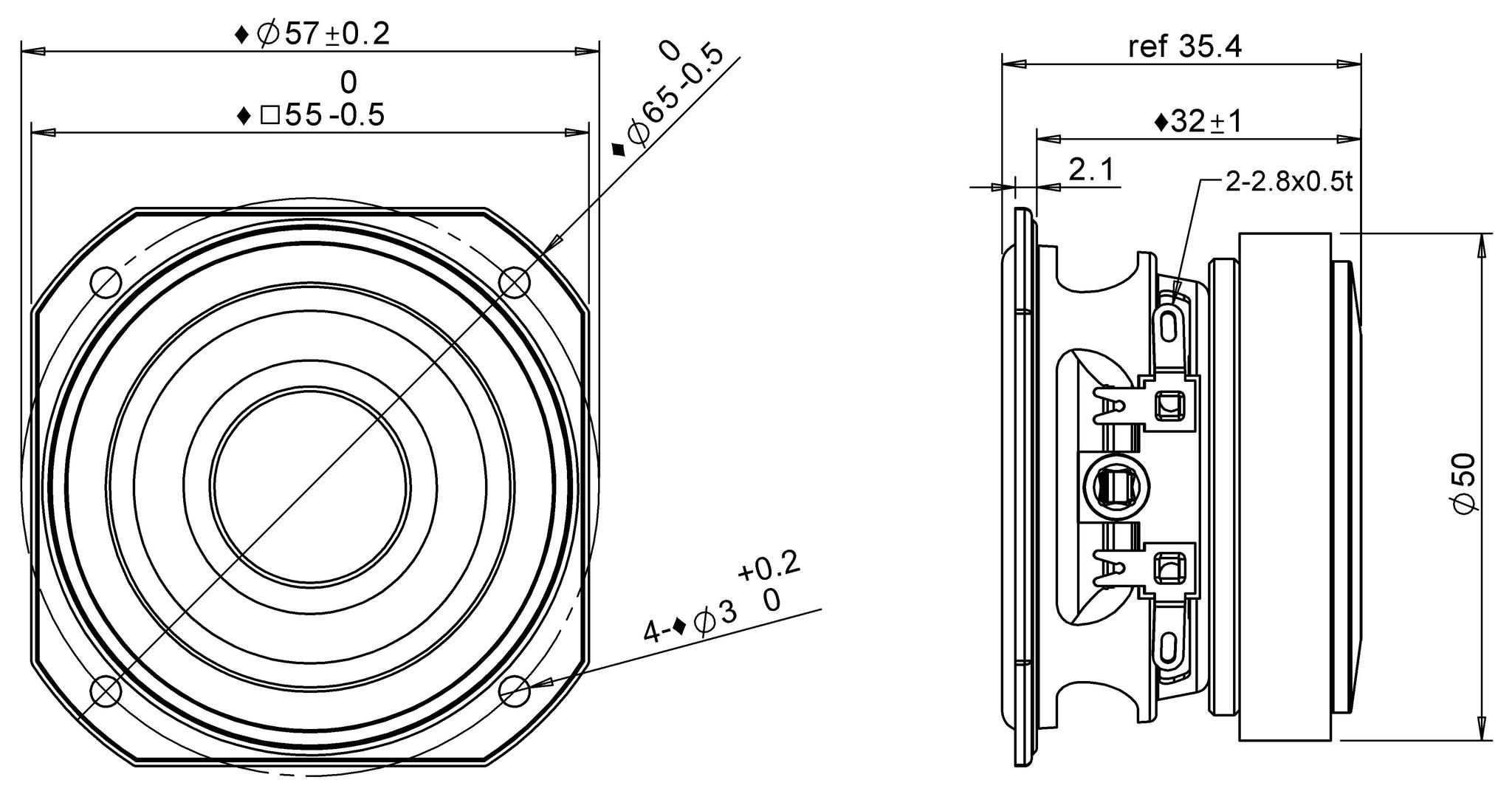

MOUNTING INFORMATION
|
Overall Outside Diameter |
2.17" |
|
Baffle Cutout Diameter |
1.97" |
|
Depth |
1.37" |
|
# Mounting Holes |
4 |
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
|
Sealed Volume |
0.02 ft.³ |
|
Sealed F3 |
165 Hz |
|
Vented Volume |
0.05 ft.³ |
|
Vented F3 |
100 Hz |
