- Magazzino: Disponibile
- Produttore: Dayton Audio
- Codice Prodotto: RS180S-8
- Peso: 2.50 Kg
Manual
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.
Highlights
- Long-excursion motor and suspension for strong bass performance
- Subtle yet high-tech look makes a bold cosmetic statement
- Ultra-low stray magnetic field allows extremely close proximity to CRT's
- Designed and engineered in the U.S.A.
Product Details

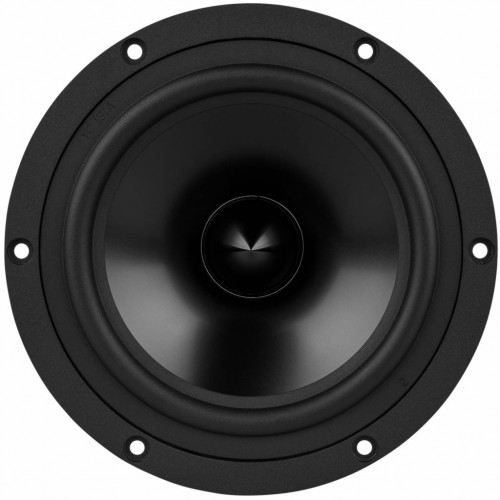

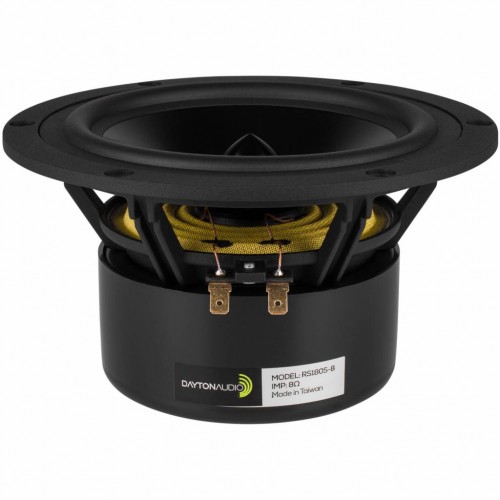

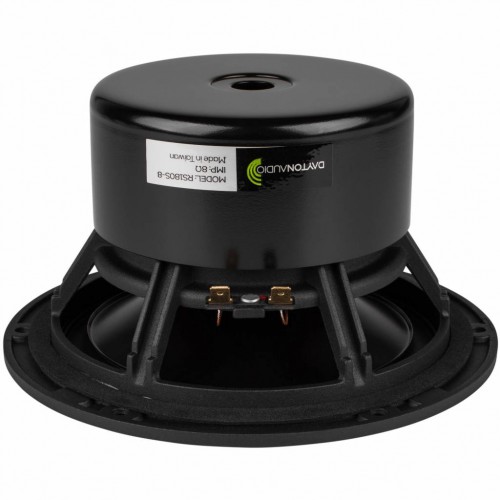

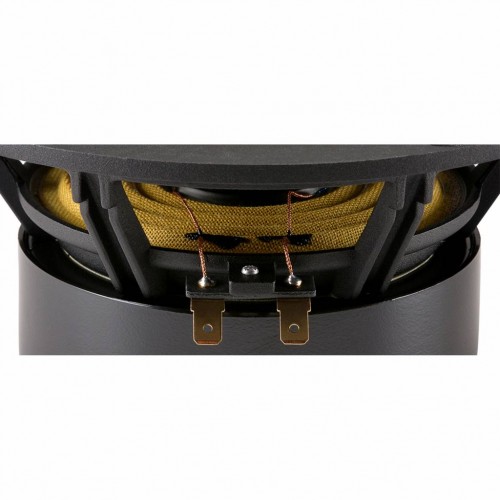

Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofers feature a shielded motor system, black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.
PRODUCT SPECIFICATIONS
|
Nominal Diameter |
7" |
|
Power Handling (RMS) |
60 Watts |
|
Power Handling (max) |
120 Watts |
|
Impedance |
8 ohms |
|
Frequency Response |
41 to 3,600 Hz |
|
Sensitivity |
86.9 dB 2.83V/1m |
|
Voice Coil Diameter |
1" |
THIELE-SMALL PARAMETERS
|
Resonant Frequency (Fs) |
37.7 Hz |
|
DC Resistance (Re) |
6.4 ohms |
|
Voice Coil Inductance (Le) |
0.79 mH |
|
Mechanical Q (Qms) |
1.45 |
|
Electromagnetic Q (Qes) |
0.49 |
|
Total Q (Qts) |
0.36 |
|
Compliance Equivalent Volume (Vas) |
0.812 ft.³ |
|
Mechanical Compliance of Suspension (Cms) |
1.05 mm/N |
|
BL Product (BL) |
7.28 Tm |
|
Diaphragm Mass Inc. Airload (Mms) |
17g |
|
Maximum Linear Excursion (Xmax) |
6 mm |
|
Surface Area of Cone (Sd) |
124.7 cm² |
MATERIALS OF CONSTRUCTION
|
Cone Material |
Aluminum |
|
Surround Material |
Rubber |
|
Voice Coil Wire Material |
Copper |
|
Voice Coil Former |
Aluminum |
|
Basket / Frame Material |
Cast Aluminum |
|
Magnet Material |
Ferrite |
MOUNTING INFORMATION
|
Overall Outside Diameter |
7.11" |
|
Baffle Cutout Diameter |
5.75" |
|
Depth |
3.86" |
|
Bolt Circle Diameter |
6.63" |
|
# Mounting Holes |
6 |
OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)
|
Sealed Volume |
0.22 ft.³ |
|
Sealed F3 |
88 Hz |
|
Vented Volume |
0.49 ft.³ |
|
Vented F3 |
50 Hz |
