- Magazzino: Disponibile
- Produttore: Peerless
- Codice Prodotto: SLS-85S25CP04-04
- Peso: 0.50 Kg
With a low Fs and 4.5 mm of excursion, the 3-1/2" Peerless SLS-85S25CP04-04 will produce powerful bass response in small speaker designs. In addition, an aluminum shorting ring and smooth response up to 5,000 Hz ensures low distortion and accuracy throughout the midrange frequencies.
Highlights
- Patented PentaCut NRSC cone for a flat, damped response
- Copper capped pole piece reduces inductance and distortion
- Great for building mini speakers and line array column speakers
Product Details
Peerless by Tymphany SLS-85S25CP04-04 3-1/2" Paper Cone Woofer
The SLS line combines high quality performance with an affordable design. This 3.5 inch 4 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.
PRODUCT SPECIFICATIONS
|
Nominal Diameter |
3-1/2" |
|
Power Handling (RMS) |
30 Watts |
|
Power Handling (max) |
60 Watts |
|
Impedance |
4 ohms |
|
Frequency Response |
70 to 6,000Hz |
|
Sensitivity |
85.98 dB 2.83V/1m |
|
Voice Coil Diameter |
1" |
THIELE-SMALL PARAMETERS
|
Resonant Frequency (Fs) |
72 Hz |
|
DC Resistance (Re) |
3.18 ohms |
|
Voice Coil Inductance (Le) |
0.16 mH |
|
Mechanical Q (Qms) |
5.38 |
|
Electromagnetic Q (Qes) |
0.37 |
|
Total Q (Qts) |
0.35 |
|
Compliance Equivalent Volume (Vas) |
0.049 ft.³ |
|
Mechanical Compliance of Suspension (Cms) |
1.023 mm/N |
|
BL Product (BL) |
4.31 Tm |
|
Diaphragm Mass Inc. Airload (Mms) |
4.7g |
|
Maximum Linear Excursion (Xmax) |
4.5 mm |
|
Surface Area of Cone (Sd) |
30.8 cm² |
MATERIALS OF CONSTRUCTION
|
Cone Material |
Treated Paper |
|
Surround Material |
Rubber |
|
Basket / Frame Material |
Steel |
|
Magnet Material |
Ferrite |

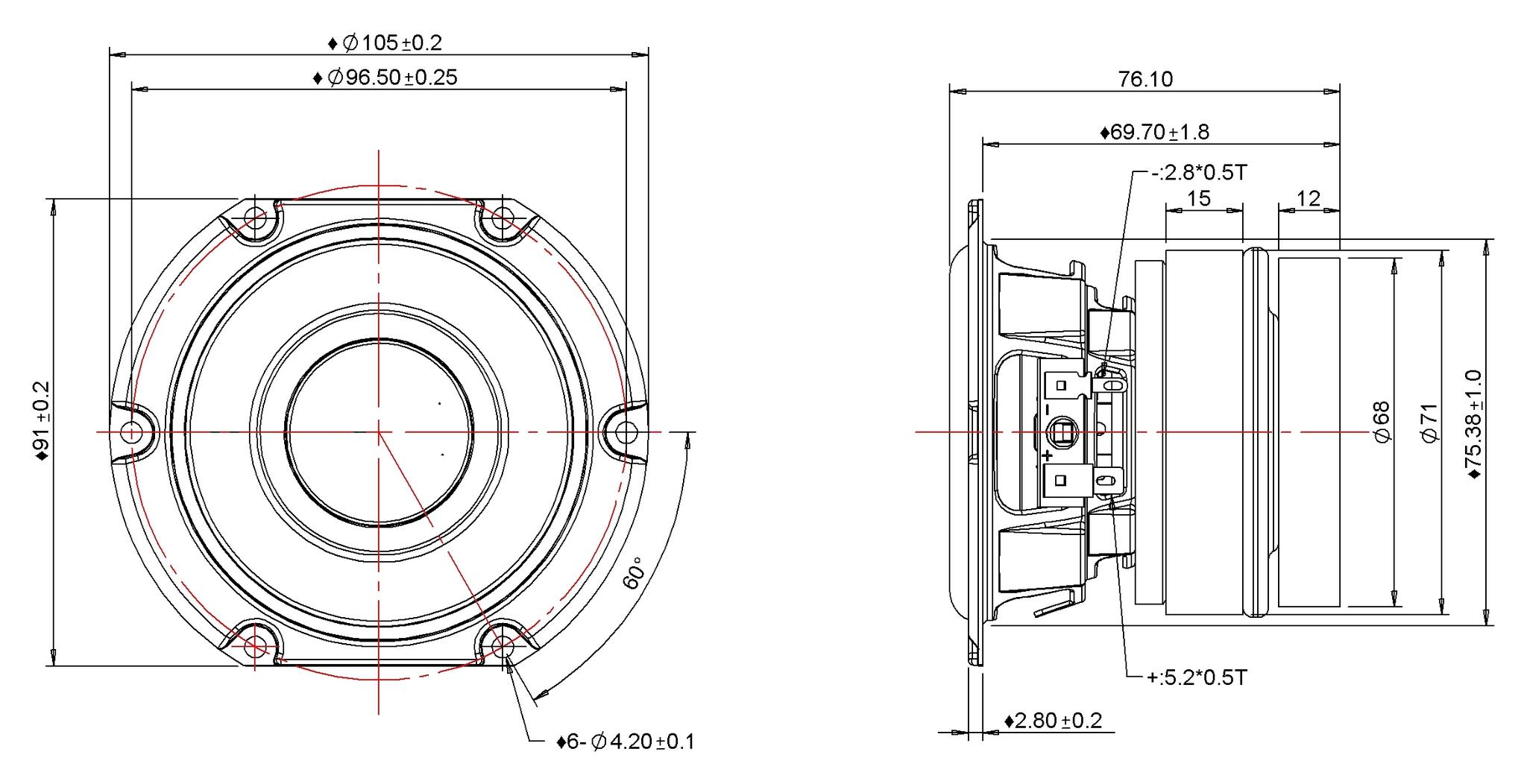

MOUNTING INFORMATION
|
Overall Outside Diameter |
4.13" |
|
Baffle Cutout Diameter |
2.96" |
|
Depth |
3.79" |
|
# Mounting Holes |
6 |
OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)
|
Sealed Volume |
0.014 ft.³ |
|
Sealed F3 |
176 Hz |
|
Vented Volume |
0.35 ft.³ |
|
Vented F3 |
92 Hz |
